| Type | Rated Voltage | MOCV | Max. Residual Voltage | Rectangular Current Impulse 2ms | High Current Impulse withstand 4/10μs | Creepage distance | Weight | ||
| steep Current Impulse 1/4μs | Nominal Current Impulse 8/20μs | Switching Current Impulse 30/60μs | |||||||
| KV | KV | KV | KV | KV | A | KA | mm/KV | KG | |
| HY5W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 150 | 65 | 31 | 1.15 |
| HY5W-6 | 6 | 5.1 | 22.6 | 18 | 16.8 | 150 | 65 | 31 | 1.20 |
| HY5W-9 | 9 | 7.65 | 33.7 | 28 | 23.8 | 150 | 65 | 31 | 1.35 |
| HY5W-10 | 10 | 8.4 | 36 | 30 | 23 | 150 | 65 | 31 | 1.40 |
| HY5W-11 | 11 | 9.4 | 40 | 33 | 30 | 150 | 65 | 31 | 1.50 |
| HY5W-12 | 12 | 10.2 | 42.2 | 36 | 27 | 150 | 65 | 31 | 1.60 |
| HY5W-15 | 15 | 12.7 | 51 | 45 | 38.5 | 150 | 65 | 31 | 2.00 |
| HY5W-18 | 18 | 15.3 | 61.5 | 54 | 46.2 | 150 | 65 | 31 | 2.20 |
| HY5W-21 | 21 | 17.0 | 71.8 | 63 | 54.2 | 150 | 65 | 31 | 2.30 |
| HY5W-24 | 24 | 19.5 | 82 | 72 | 62 | 150 | 65 | 31 | 2.38 |
| HY5W-27 | 27 | 22.0 | 92 | 81 | 69.8 | 150 | 65 | 31 | 2.50 |
| HY5W-30 | 30 | 24.4 | 102 | 90 | 79 | 150 | 65 | 31 | 2.80 |
| HY5W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 150 | 65 | 31 | 3.00 |
| HY5W-36 | 36 | 29.0 | 117 | 108 | 92.4 | 150 | 65 | 31 | 3.20 |
| HY5W-39 | 39 | 31.5 | 123 | 111 | 94 | 150 | 65 | 31 | 3.50 |
| HY5W-42 | 42 | 33.6 | 126 | 114 | 101 | 150 | 65 | 31 | 3.80 |

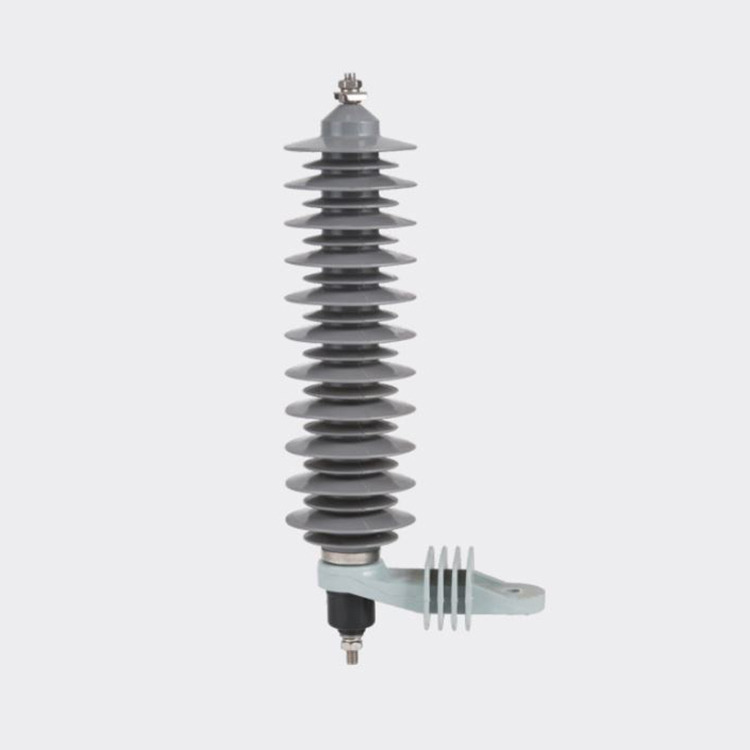

Product Detials ____________
Product Dimensions _____________
Packing Style ______________
35kv Equipments Testing Center _____________
Company Introduction
1. The Conso Electric is handquartered in Yueqing, China;
2. It has OEM status of Heag Group and XJ group;
3. The main product is 10kv to 35kv Transformer, Substation and VCB.
Human Resource
Office Building
Reliable in Quality and Competitive in Price
Our product meets the standard of IEC and GB. The product runs comprehensive type tests according to the
lastest IEC and GB standard. The ISO sends specialists to inspect annually in Conso Electric of China.
